Hyundai Genesis (DH): Lubrication System / Oil Pan Components and Components Location

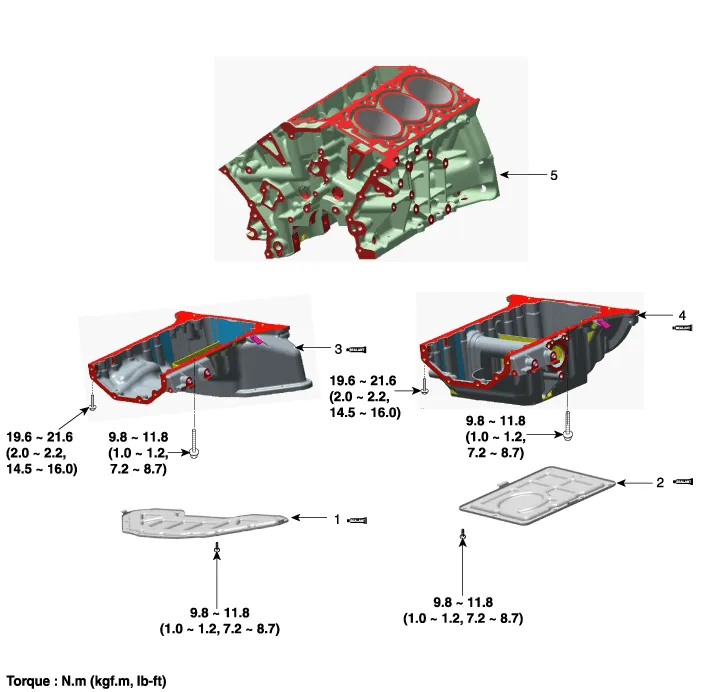

| Components |
| 1. 2WD Lower oil pan 2. AWD Lower oil pan | 3. 2WD Upper oil pan 4. AWD Upper oil pan 5. Cylinder block |
Removal and Installation Oil filter body 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 3.
Removal [Lower oil pan] 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 3.
