Hyundai Genesis (DH): Lubrication System / Oil Level Gauge & Pipe Components and Components Location
| Components |

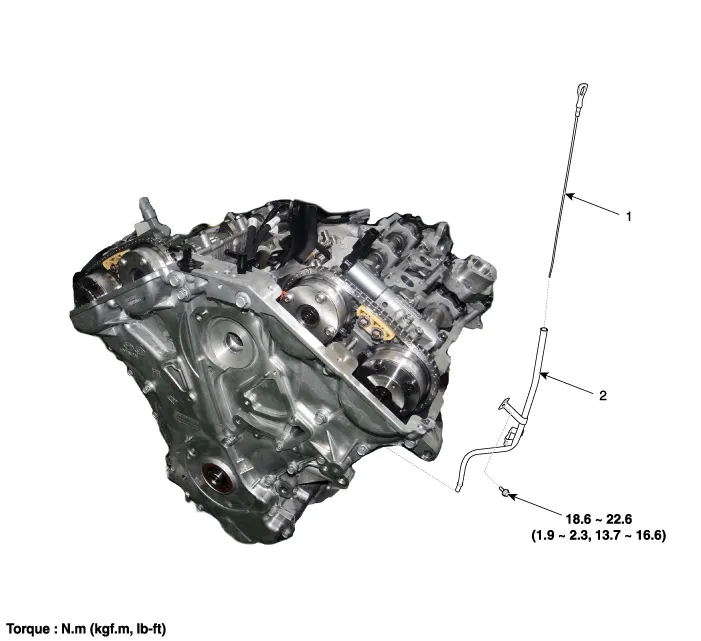

| 1. Engine oil level gauge | 2. Engine oil level gauge rod |
Removal and Installation 1. Remove the lower oil pan. (Refer to Lubrication System - "Oil pan") 2. Remove the upper oil pan. 3. Remove the bolt (A) and then separate the chain with sprocket from the oil pump.
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 3.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: LKAS Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the mirror wiring cover (A) and rain sensor cover (B). 3. Remove the LKAS unit connector (A). 4. Remove the LKAS unit after disengaging the mounting bracket (A). Installation 1.
Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
