Hyundai Genesis (DH): Lighting System / Head Lamps Components and Components Location
| Components |

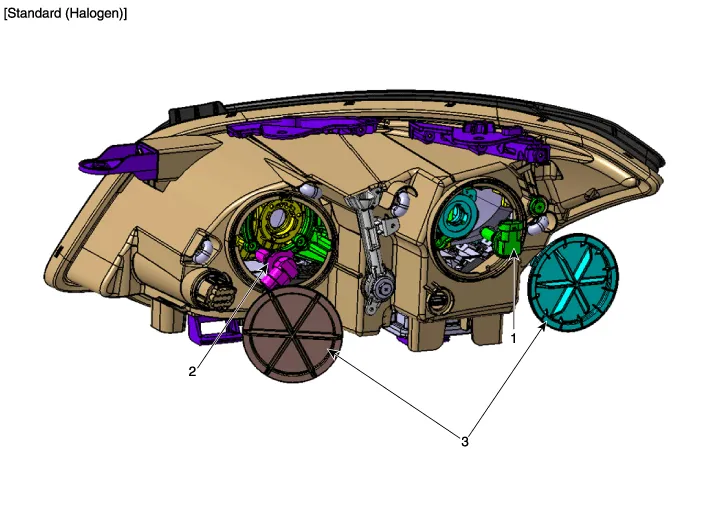

| 1. Head lamp low beam bulb 2. Head lamp high beam bulb | 3. Dust cap |

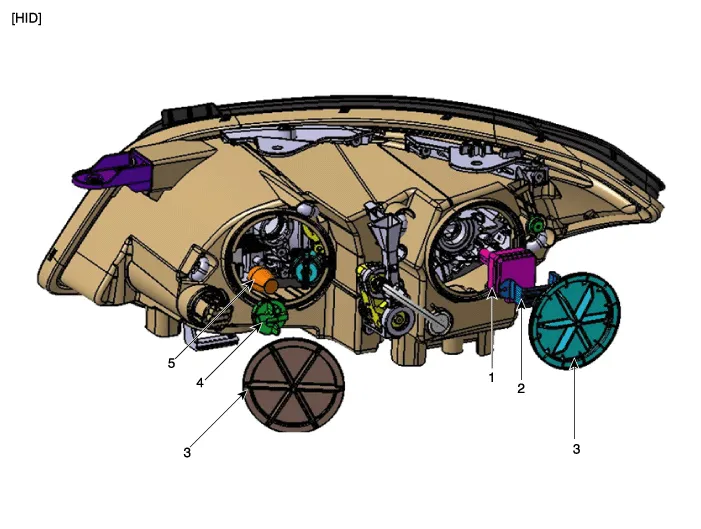

| 1. HID low/high beam bulb (BI-FUNCTION) 2. HID bracket 3. Dust cap | 4. Turn signal socket 5. Turn signal bulb |
Component Location 1. Head lamp (Low/)2. Head lamp (High)3. Head lamp (BI-FUNCTION)4.Turn signal lamp5. Side marker lamp6. Position lamp (USA only) Position lamp & DRL7.
HID Head Lamp 1. Bulb (1) Elements Xenon gas: Xenon gas activates the initial reaction to. Molybdenum electrode : anode arc discharge Metal halide salts: color composing component (2) Lightening principle When Xenon gas and metal halide salt will discharge the molybdenum anode in a capsule, it emits light.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Repair procedures
Diagnosis With GDS 1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. 2. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.
Hyundai Genesis (DH) 2013-2016 Service Manual: Console Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the console temperature control actuator connector. 3. Verify that the console temperature control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.
