Hyundai Genesis (DH): Hands Free System / Hands Free Switch Schematic Diagrams

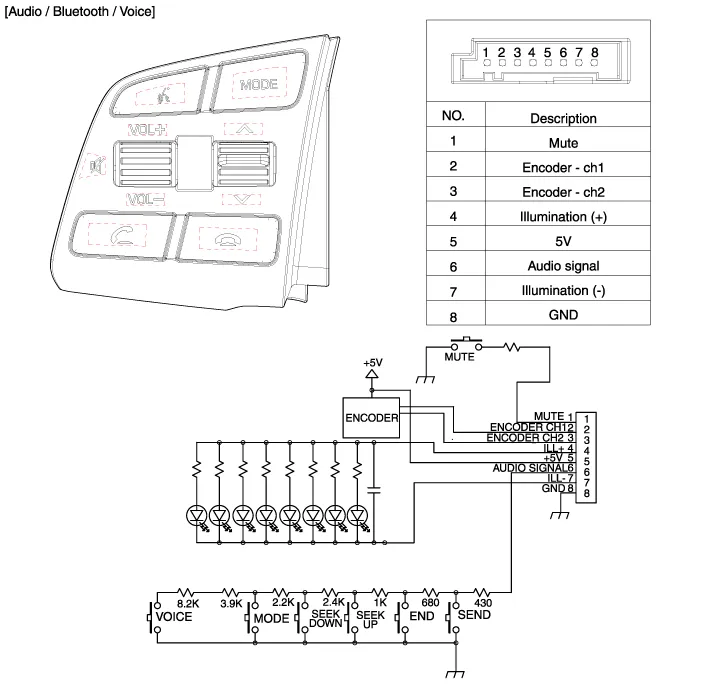

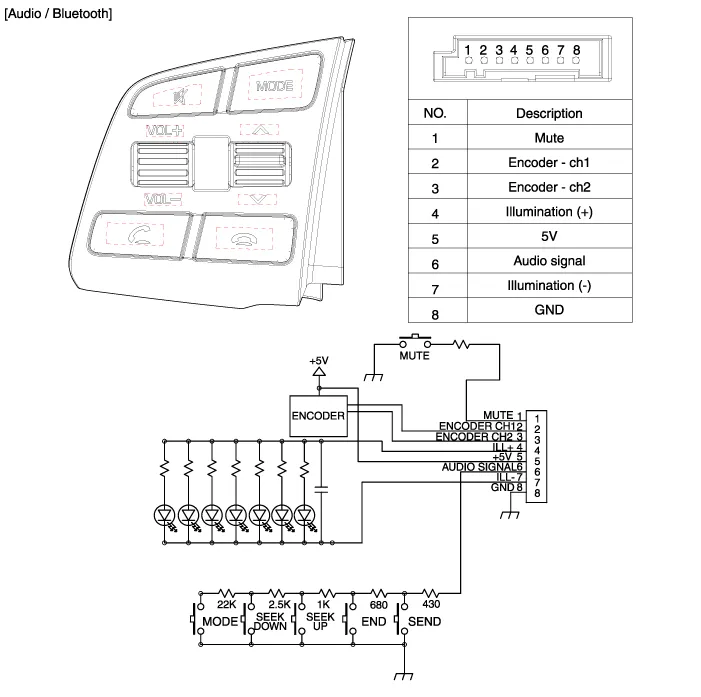

| Circuit Diagram |
Components 1. Hands free call switch2. Overhead console (Mic)3. Front left speaker4. Front right speaker5. Audio head unit (hands free control) ? There is no hands free jack.
Inspection 1. Check for resistance between terminals in each switch position(LH). [Audio] SwitchConnectorterminalResistance(
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Head Lamp Leveling Unit Description and Operation
Description According to driving environment and loading state of vehicle, head lamp lighting direction is changed to keep the driver's visibility range and to protect the driver's vision from glare, aiming at safety driving. Sensor integrated ECU mounting on the rear center arm drives the actuator mounting on the head lamp since sens
Hyundai Genesis (DH) 2013-2016 Service Manual: Photo Sensor Repair procedures
Inspection 1. Turn the ignition switch ON. 2. Connect the GDS. 3. Emit intensive light toward the photo sensor using a lamp, and check the output voltage change. 4. The voltage will rise with higher intensive light and fall with lower intensive light.
