Hyundai Genesis (DH): Front Seat Belt / Front Seat Belt Retractor Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Retractor Components and Components Location

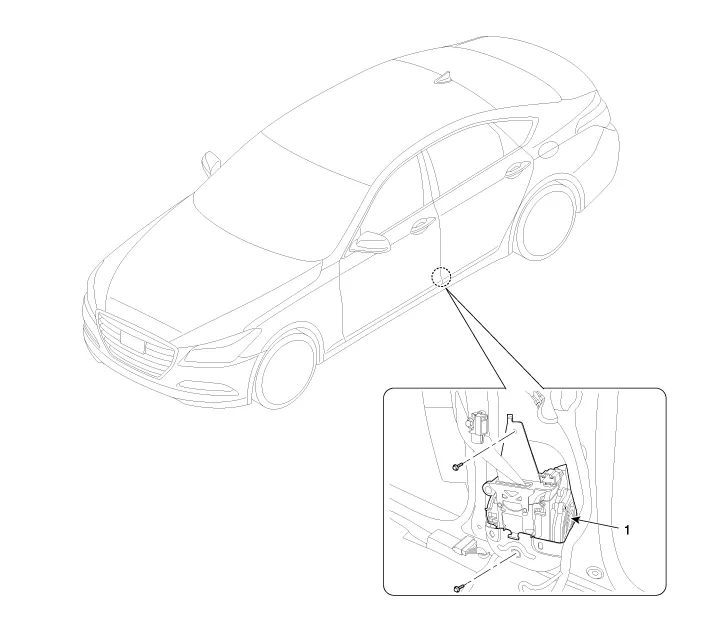

Component Location

1. Front seat belt retractor


    Components 1. Front seat belt2. Height adjuster 3. Rear seat belt4. Rear center seat belt 5. Rear seat belt buckle

    Replacement
