Hyundai Genesis (DH): Intake And Exhaust System / Exhaust Manifold Components and Components Location

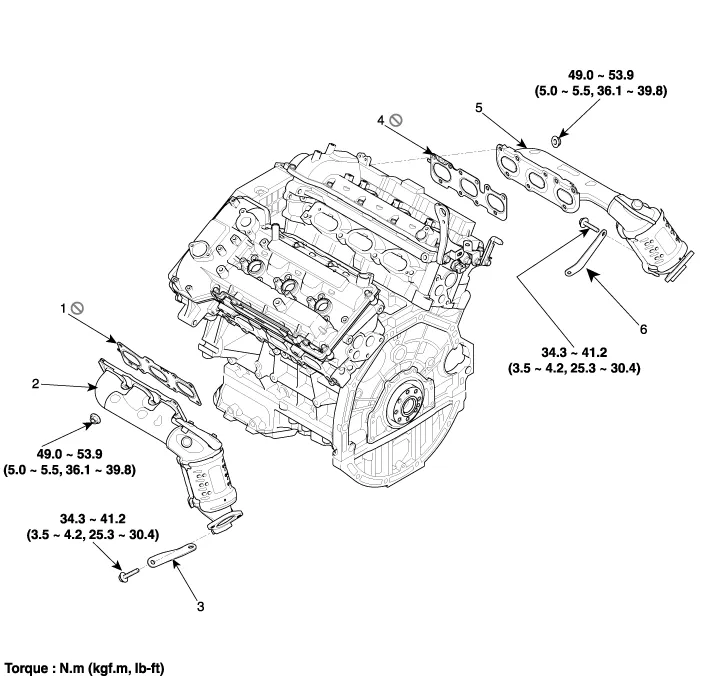

| Components |
| 1. LH Gasket 2. LH Exhaust manifold 3. RH Exhaust manifold stay | 4. RH Gasket 5. RH Exhaust manifold 6. RH Exhaust manifold stay |
Removal and Installation 1. Remove the surge tank. (Refer to Intake and Exhaust System - "Surge Tank") 2. Remove the breather pipe & hose (A).
Removal and Installation LH Exhaust Manifold 1. Disconnect the battery "-" terminal from the trunk room. 2. Loosen the drain plug and drain the engine coolant.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Cluster Ionizer Repair procedures
Inspection 1. Press the MODE switch more than 4 times within 2 seconds while pressing the OFF switch. DisplayFail description00Normal51Cluster ion generator fault * For diagnostic procedure, refer to DTC guide. Replacement 1. Disconnect the negative (-) battery terminal.
Hyundai Genesis (DH) 2013-2016 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4. Verify that the mode control actuator operates to the vent mode when connected in reverse.
