Hyundai Genesis (DH): Engine And Transaxle Assembly / Engine Mounting Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Mounting Components and Components Location

Components

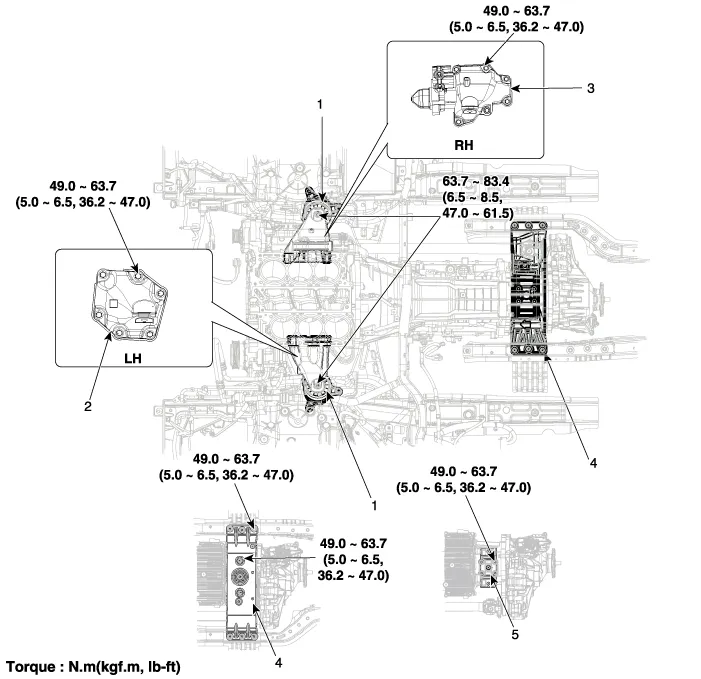

[2WD]

1. Engine mounting insulator assembly
2. Engine support bracket LH

3. Engine support bracket RH
4. Transmission mounting insulator

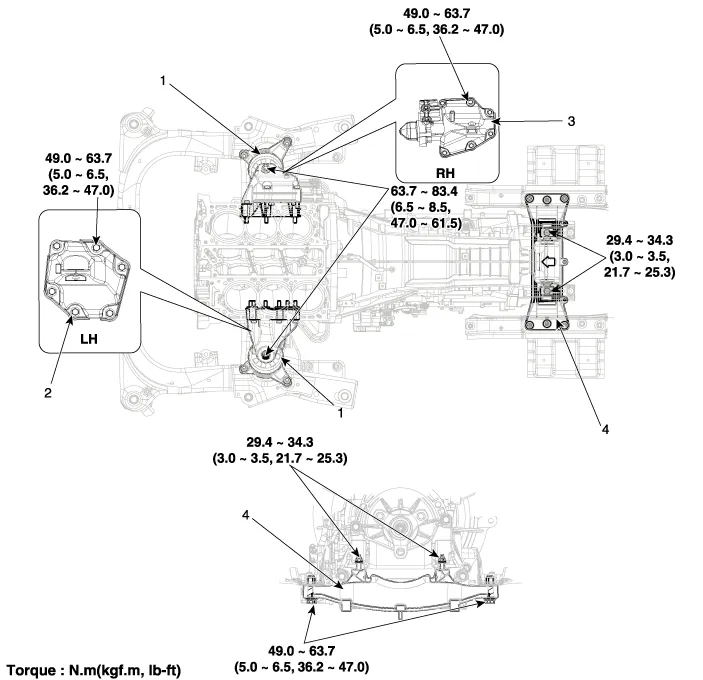

[AWD]

1. Engine mounting insulator assembly
2. Engine support bracket LH
3. Engine support bracket RH

4. Transmission support bracket
5. Transmission mounting insulator
