Description
System Overview

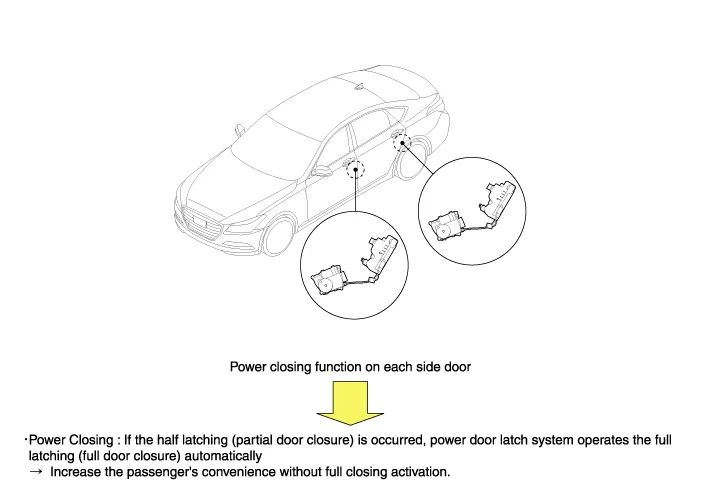

The larger the size of the door, the harder it is to close it. Quite often we see people driving with a door not completely closed.
Power door latch addresses the issue of partially completely closes the doors partially shut if the driver/passenger gives a little push to them.
Commonly, partial door closure is known as 1st closure and full door closure is known as 2nd closure.
Main features of the system are as follows.
-
Featured on all four doors.
-
Consists of a door lock actuator and a soft closing actuator.
-
Locks/unlocks doors using DDM and ADM signals.

System Structure
Following is a diagram of the driver

    Component Location 1. DDM (Driver Door Module)2. ADM (Assist Door Module)3. IGPM (Integrated Gateway Power Control Module)4. Door lock knob5. Trunk lid actuator6.

    Components 1. Power Actuator2. Cinching Cable3. Door Latch
