Hyundai Genesis (DH): Cylinder Head Assembly / CVVT Assembly Components and Components Location
| Components |

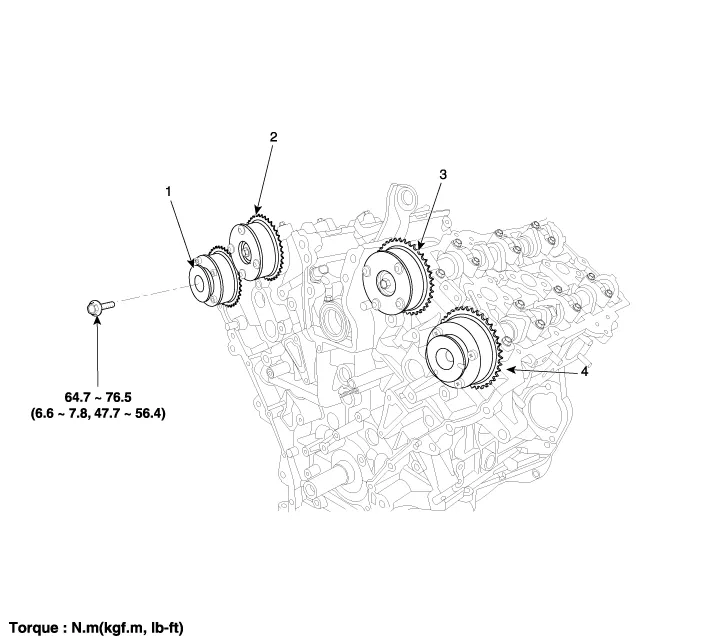

| 1. RH exhaust CVVT 2. RH intake CVVT | 3. LH intake CVVT 4. LH exhaust CVVT |
Removal LH Cylinder Head Cover 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the surge tank. (Refer to Intake And Exhaust System - "Surge Tank") 3.
Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine speed and load.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the warm (Driver's side) or cool (Passenger's side) position when connecting 12V to terminal 3 and grounding terminal 4.
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
