Hyundai Genesis (DH): Airbag Module / Curtain Airbag (CAB) Module Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / Airbag Module / Curtain Airbag (CAB) Module Components and Components Location

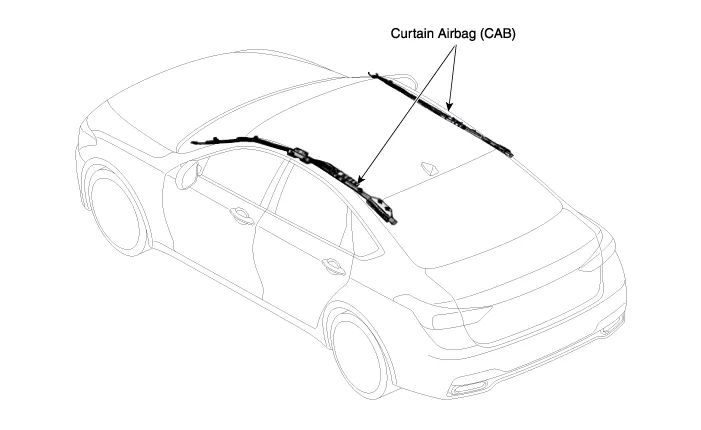

Components

    Description Curtain airbags are installed inside the headliner (LH and RH) and protect the driver and passenger from danger when a side crash occurs.

    Removal 1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work. 2. Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly") 3.
