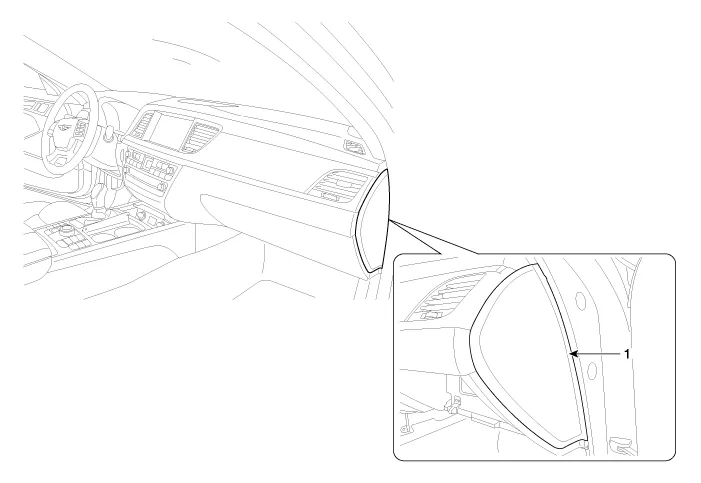

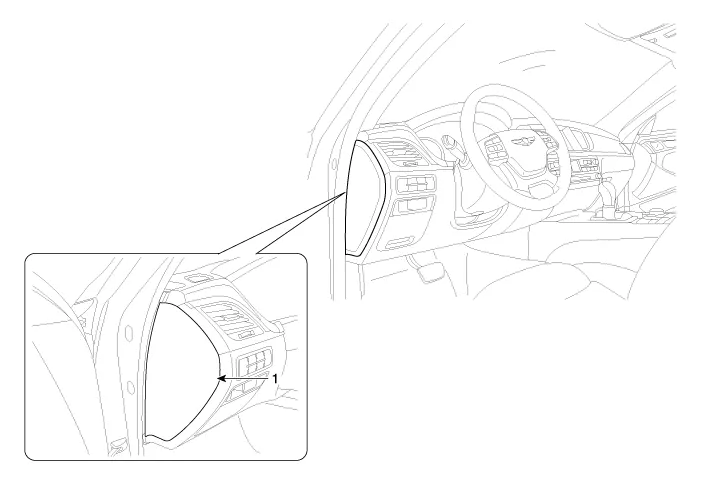

Hyundai Genesis (DH): Crash Pad / Crash Pad Side Cover Components and Components Location

Other information:

Hyundai Genesis (DH) 2013-2016 Service Manual: Repair procedures

Diagnosis With GDS 1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. 2. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.

Hyundai Genesis (DH) 2013-2016 Service Manual: Receiver-Drier Repair procedures

Replacement 1. Remove the condenser. 2. Remove the cap (B) on the bottom of the condenser with the L wrench (A). Tightening torque : 9.81 ~ 14.71 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft) 3. Remove the receiver-drier (A) from condenser using a long nose plier.
