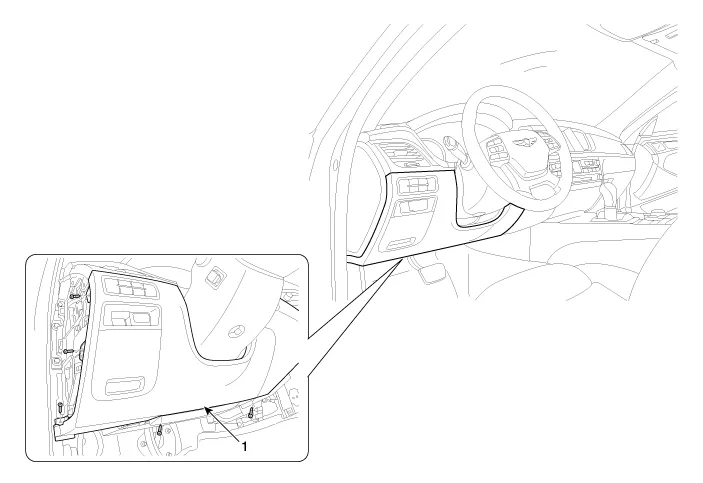

Component Location

1. Crash pad lower panel


    Replacement

    Replacement

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: License Lamps Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the trunk lid panel. (Refer to Body - "Trunk Lid Back Panel") 3. Remove the license lamp after disengaging the license lamp mounting clip (A) 4. Remove the license lamp assembly after disconnecting the license connector (A).

    Hyundai Genesis (DH) 2013-2016 Service Manual: Receiver-Drier Repair procedures

    Replacement 1. Remove the condenser. 2. Remove the cap (B) on the bottom of the condenser with the L wrench (A). Tightening torque : 9.81 ~ 14.71 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft) 3. Remove the receiver-drier (A) from condenser using a long nose plier.
