Hyundai Genesis (DH): Timing System / Crankshaft Damper Pulley Components and Components Location

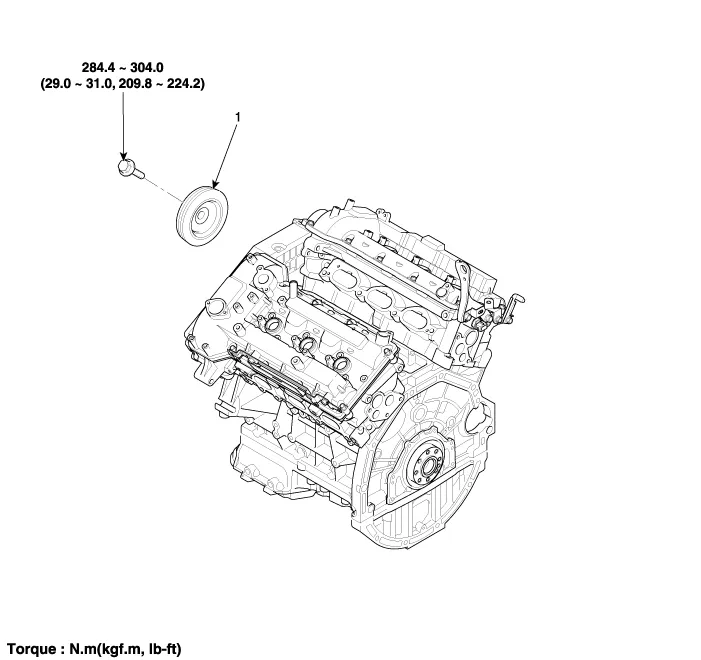

| Components |
| 1. Crankshaft pulley |
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the drive belt auto tensioner (A). Tightening torque Bolt (B) : 81.
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the engine under cover. 3. Remove the crankshaft pulley (A).
