Hyundai Genesis (DH): Cooling System / Cooling Fan Components and Components Location
| Components |

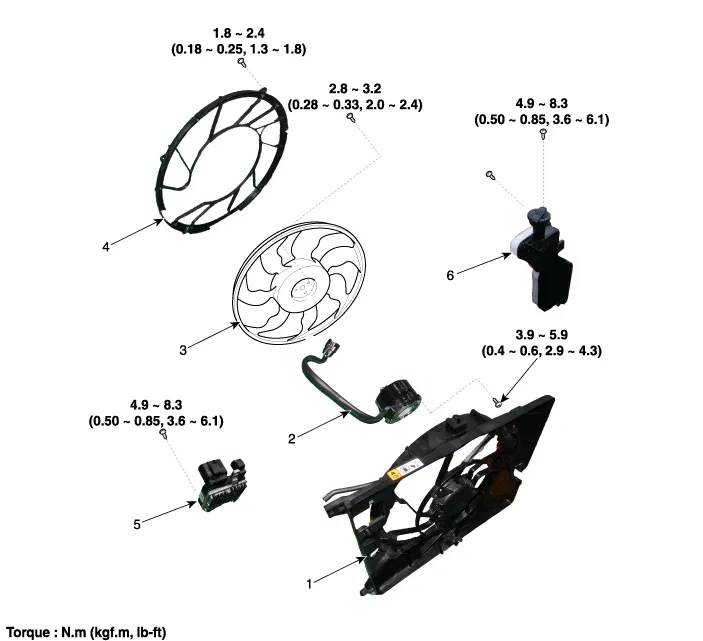

| 1. Cooling fan shroud 2. Cooing fan 3. Cooling fan motor | 4. Cooling far rear cover 5. Cooling fan controller (PWM) 6. Reservoir tank |
Replacement and Air Bleeding Never remove the radiator cap when the engine is hot. A serious scalding could be caused by high-pressure hot fluid escaping from the radiator.
Description The cooling fan controlsx the cooling fan motor voltage depending on the duty output from the ECU (Freq.: 300Hz). [Signal from the ECU to the PWM (SI: 300Hz)] SI DutyMotor Voltage (V)Variation (V)10%0
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Power Mosfet Repair procedures
Inspection 1. Turn the ignition switch ON. 2. Manually operate the control switch and control the voltage of the blower motor. 3. Select the control switch to raise the voltage until high speed. Specification Fan Speed (Manual)Motor Voltage (V)13.
Hyundai Genesis (DH) 2013-2016 Service Manual: Climate Control Air Filter Repair procedures
Replacement 1. Remove both stoppers (B) by turning them from the glove box (A). 2. Disconnect the air damper (A) from the glove box (B). 3. Remove the filter cover (A) by pressing the knob. 4. Replace the air filter (A) with a new one according to the direction of air filter.
