Hyundai Genesis (DH): Keyless Entry And Burglar Alarm / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Components and Components Location

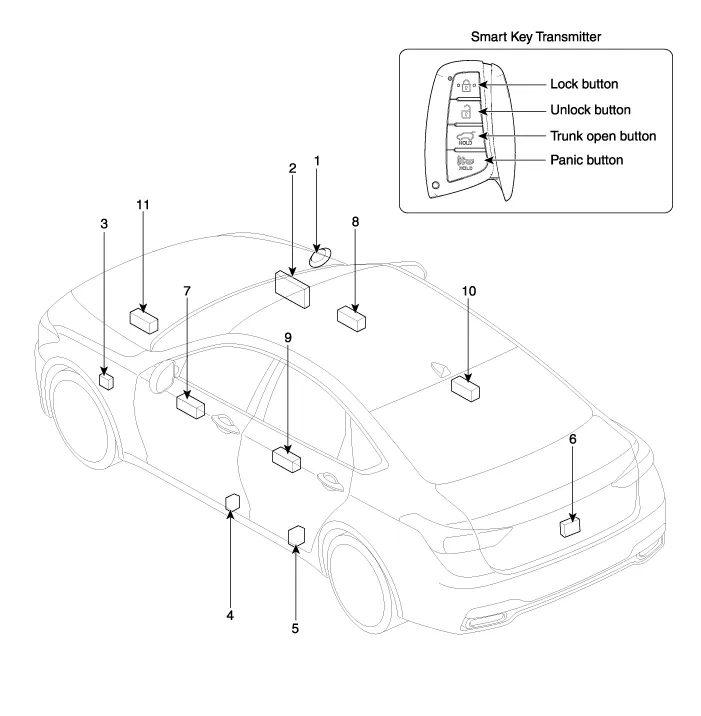

Component Location

1. Burglar horn
2. BCM
3. Door lock / unlock buzzer
4. Front door lock actuator & switch
5. Rear door lock actuator &switch
6. (Power Trunk Module) Actuators & Switch
7. DDM (Driver Door Module)
8. ADM (Assist Door Module)
9. RLDM (Rear Left Door Module)
10. RRDM (Rear Right Door Module)
11. Smart Key Unit

    Specification ItemSpecificationPower source3VOperating temperature-30

    Description Burglar Alarm State [B/A State] B/A StateDescriptionDISARM 1. This is the state when
