Hyundai Genesis (DH): Smart Key System / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Smart Key System / Components and Components Location

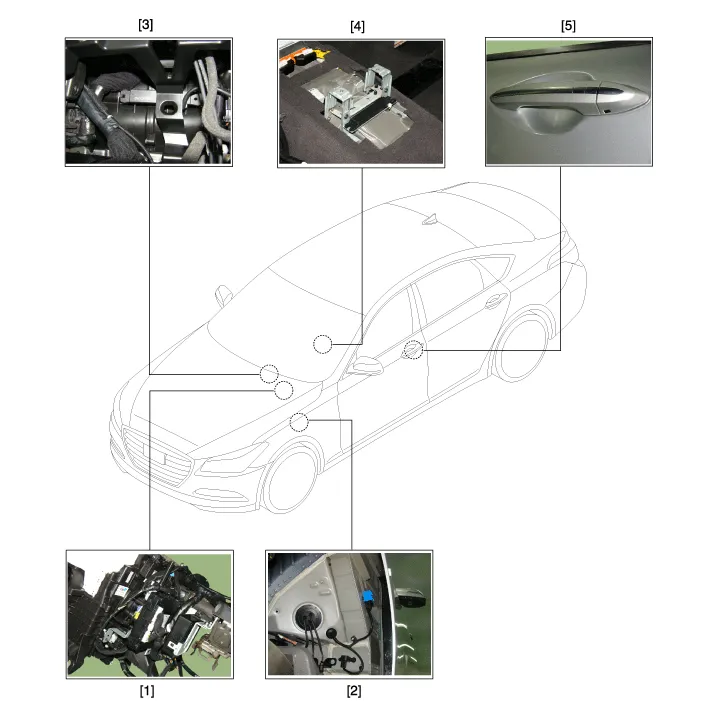

Component Location (1)

1. Smart key unit
2. Buzzer
3. Interior antenna 1
4. Interior antenna 2
5. Door outside handle

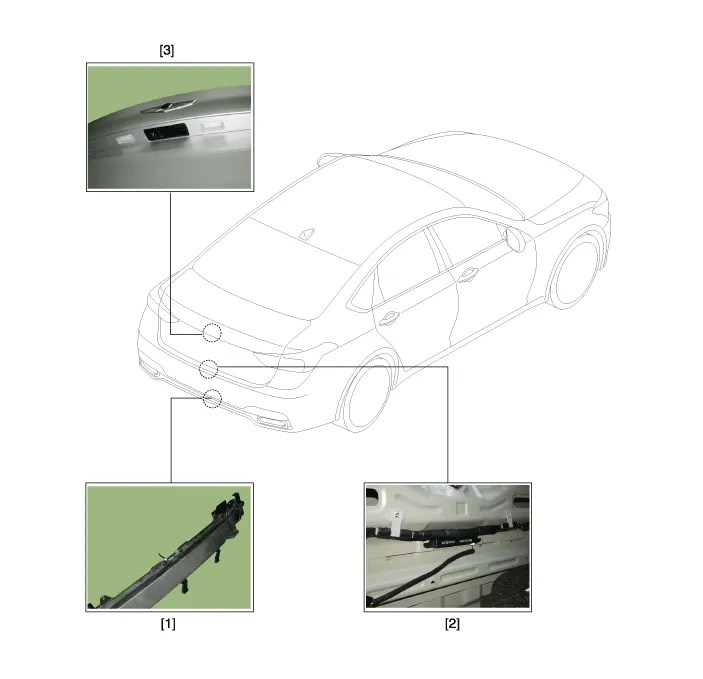

Component Location (2)

1. Bumper antenna
2. Trunk atenna
3. Trunk open switch

    Specifications Smart Key Unit ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-22

    Description     Refer to the "Body Network System" for the abbreviation information. The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way.
