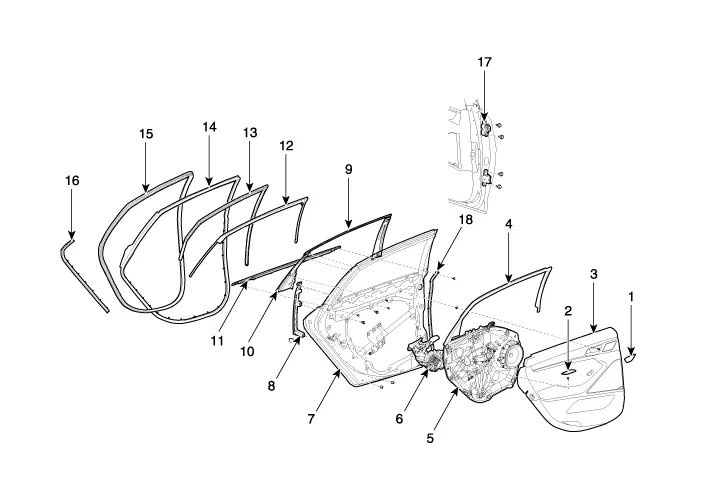

Components

1. Rear door inside handle cap
2. Rear door pull cap
3. Rear door trim
4. Rear door frame inner cover
5. Rear door module
6. Rear door latch assembly
7. Rear door panel
8. Rear door channel
9. Rear door frame moulding
10. Rear door frame garnish
11. Rear door belt outside weatherstrip
12. Rear door upper open weatherstrip
13. Rear door windshield glass run assembly
14. Rear door side weatherstrip
15. Rear door body side weatherstrip
16. Rear door parting weatherstrip
17. Rear door hinge
18. Rear door front parting weather strip

    Adjustment Glass Adjustment
