Hyundai Genesis (DH): Automatic Transmission Control System / Components and Components Location

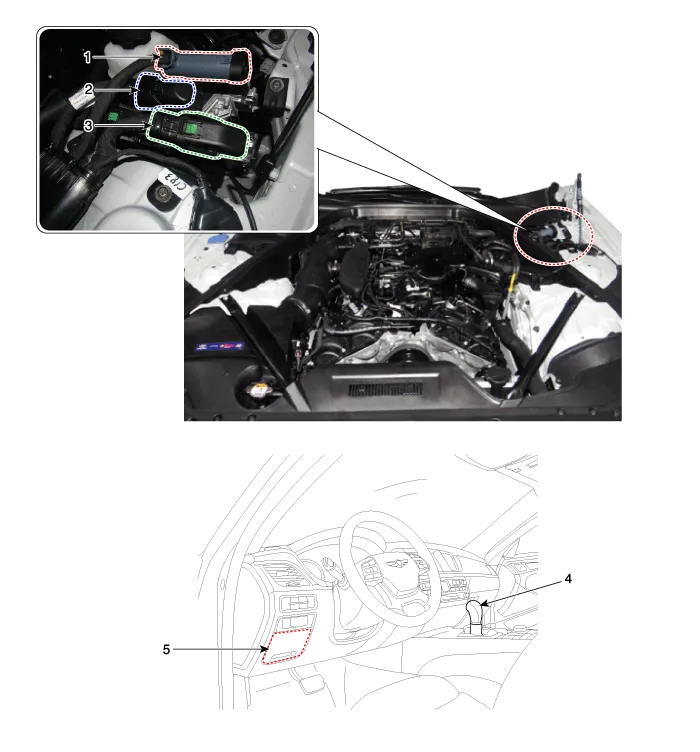

| Components Location |
| [Vehicle Components] |
| 1. Transmission Control Module(TCM) 2. Injector Driver Box(IDB) 3. Engine Control Module(ECM) | 4. Shift lever 5. Date Link Connector (DLC) |

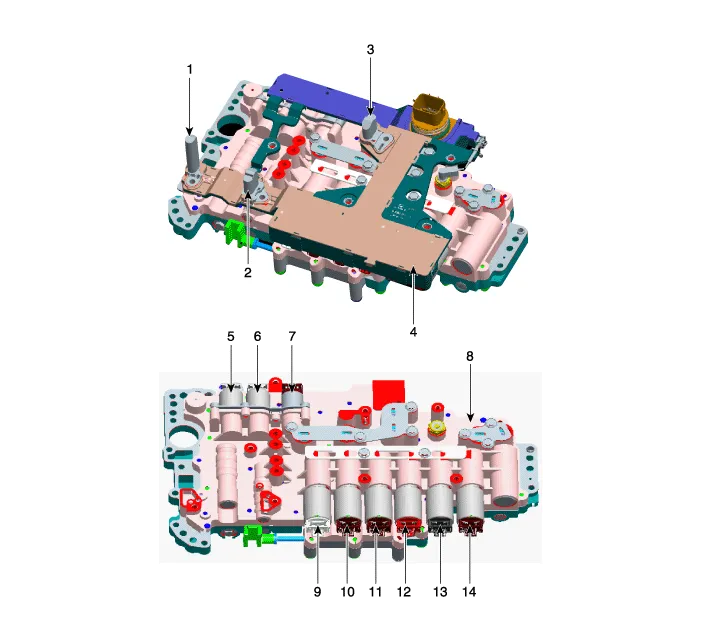

| [Transmission Components] |
| 1. Input speed sensor 2. Middle speed sensor 3. Output speed sensor 4. E Module assembly 5. Line pressure control solenoid valve 6. Damper clutch control solenoid valve 7. ON/OFF solenoid valve | 8. Valve body assembly 9. 8LR/B control solenoid valve 10. 6/C control solenoid valve 11. 27/B control solenoid valve 12. 35R/C control solenoid valve 13. 4&OD/C control solenoid valve 14. UD/C control solenoid valve |
Circuit Diagram
Description Transmission Control Module (TCM) plays a role of the brain for the automatic transmission. The module receives and processes signals from various sensors and implements a wide range of Transmission controls to ensure optimal driving conditions for the driver.
