Hyundai Genesis (DH): Air Conditioning System / CO2 Sensor Schematic Diagrams

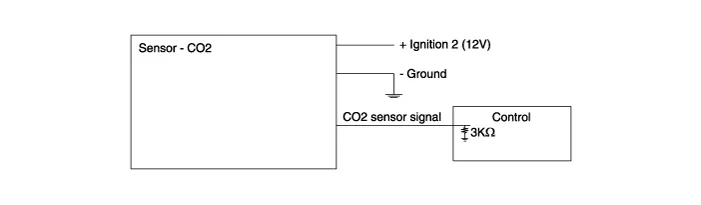

| Interface Diagram |
Description This system maintains the density of carbon dioxide constantly in vehicle interior by measuring the amount of carbon dioxide to increase the comfortableness and the fuel consumption rate when air conditioning system is operating.
Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad under cover [RH]. (Refer to Body - "Crash Pad Under Cover") 3.
