Hyundai Genesis (DH): Seat Electrical / Climate Seat Unit Schematic Diagrams

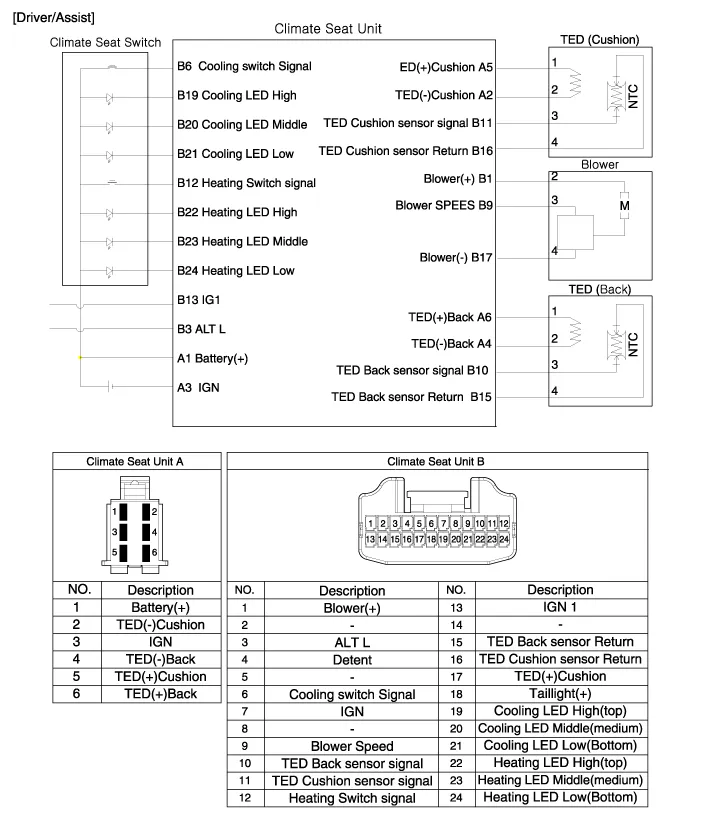

| Circuit Diagram |
Component Location 1. Heating ventilation blower2. Heating ventilation blower ECU3. Thermoelectric element [TED]
Description Comparing with the seat heat function by the existing thermic rays, Climate Control Seat functions the heating, cooling, dehumidifying by using TED.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the warm (Driver's side) or cool (Passenger's side) position when connecting 12V to terminal 3 and grounding terminal 4.
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
