Hyundai Genesis (DH): Seat Electrical / Climate Seat Unit Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Seat Electrical / Climate Seat Unit Components and Components Location
| Component Location |

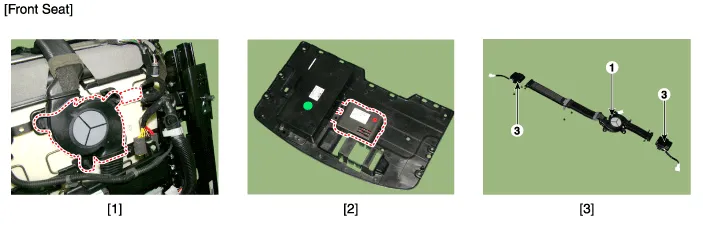

| 1. Heating ventilation blower 2. Heating ventilation blower ECU | 3. Thermoelectric element [TED] |
Removal Front Seat 1. Disconnect the battery (-)terminals. 2. Remove the floor console upper cover. (Refer to Body - "Floor Console Assembly") 3.
Circuit Diagram
