Hyundai Genesis (DH): Engine Control System / Canister Close Valve (CCV) Schematic Diagrams
Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / Canister Close Valve (CCV) Schematic Diagrams

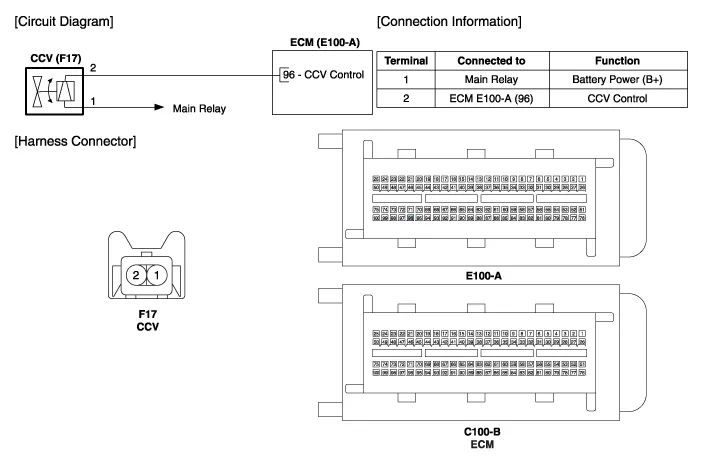

| Schematic Diagrams |
Specification ItemSpecification Coil Resistance (?) 23.0 ~ 26.0 (20
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the CCV connector. 3. Measure resistance between the CCV terminal 1 and 2. 4.
