Hyundai Genesis (DH): Blower / Blower Unit Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Unit Components and Components Location

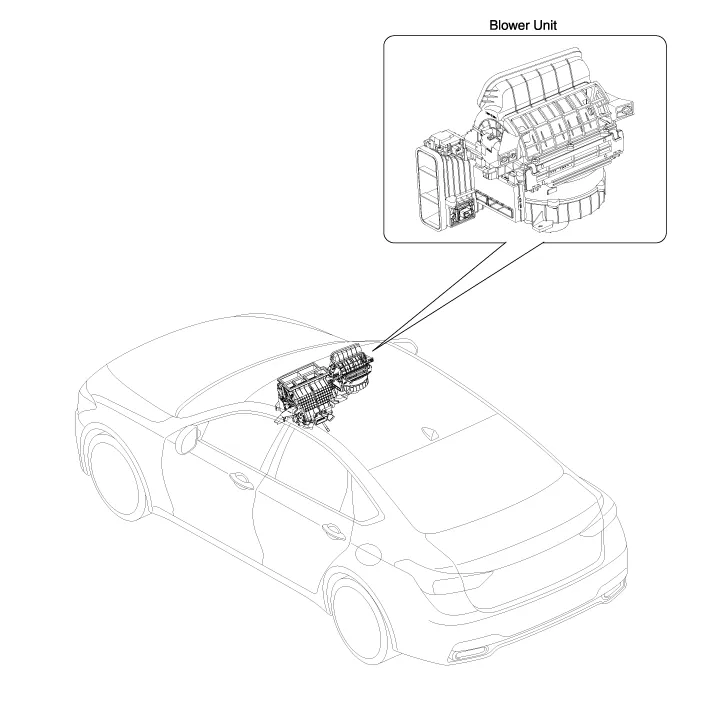

| Component Location |

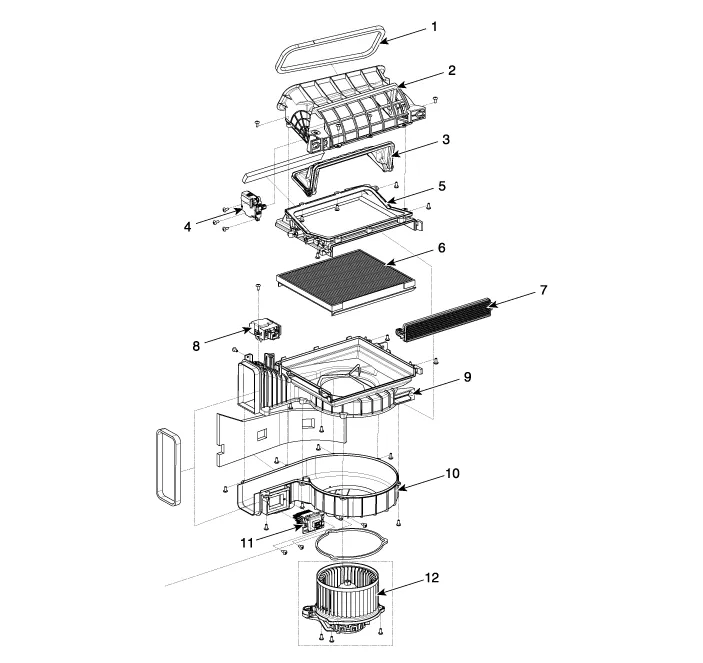

| Components |
| 1. Seal 2. Intake Duct Case 3. Intake Door 4. Intake Actuator 5. Intake Duct Case (A) 6. Climate Control Air Filter | 7. Climate Control Air Filter Cover 8. Cluster Ionizer 9. Blower Upper Case 10. Blower Lower Case 11. Power Mosfet 12. Blower Motor |
Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/recycling/charging station. 3. When the engine cools down, drain the engine coolant from the radiator.
