Hyundai Genesis (DH): Engine Control System / Barometric Pressure Sensor (BPS) Schematic Diagrams

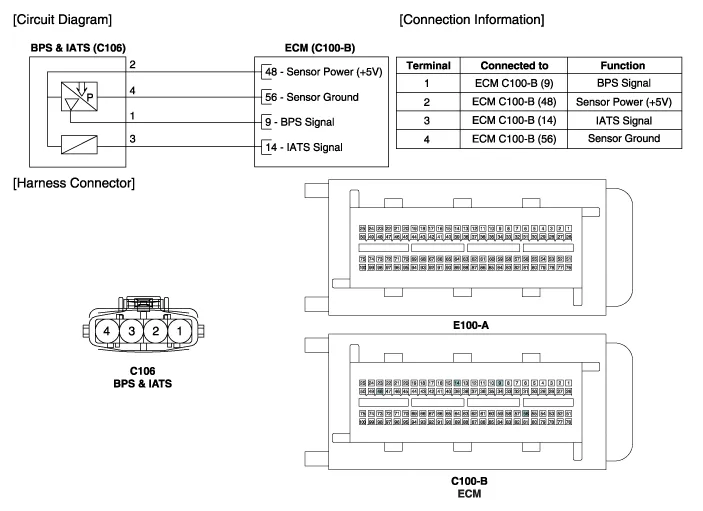

| Circuit Diagram |
Specification Pressure (kPa)Output Voltage (V)10.00.5055.02.21100.03.93115.04.50
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the BPS at idle and with the ignition ON. Specification: Refer to "Specification" Removal 1.
