Description

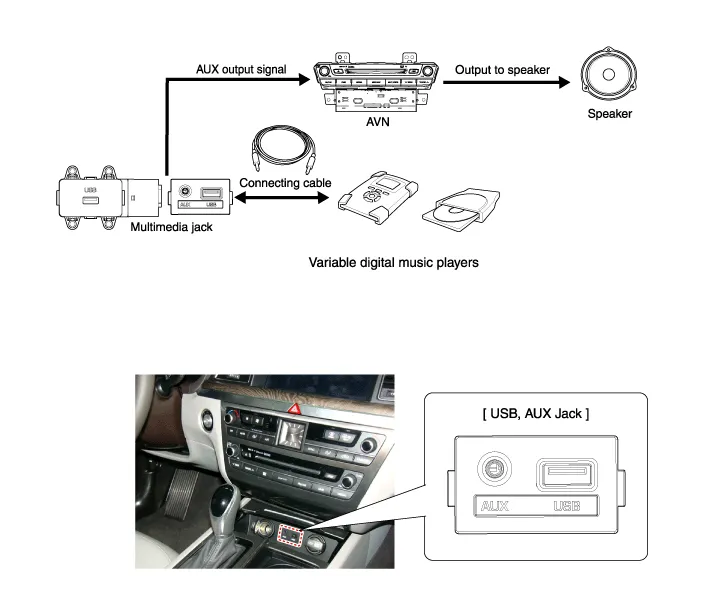

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.
In case of distorted sound coming from the AUX-linked external music players, the audio unit may not be defective but the output level of the player does not match the specification of the AUX.

    Circuit Diagram

    Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the floor console assembly. (Refer to Body - "Floor Console Assembly") 3.
