Hyundai Genesis (DH): Auto Lighting Control System / Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Auto Lighting Control System / Components and Components Location

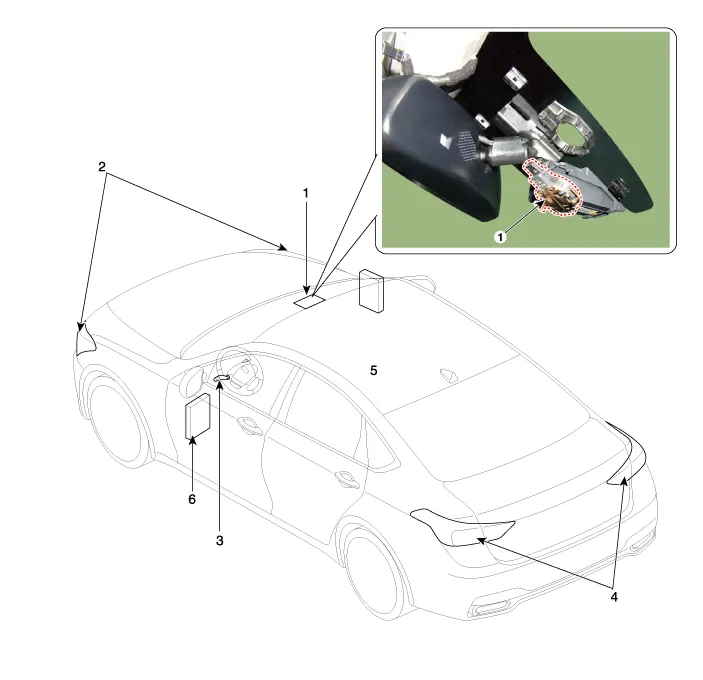

| Component Location |
| 1. Rain sensor (Built - in Auto light sensor) 2. Head lamps 3. Lighting switch (Auto) | 4. Tail lamps 5. BCM (Body Control Module) 6. SJB (Smart Junction Block) |
Specifications ItemsSpecificationsRated voltage5VLoadMax. 1mA (Relay load)Detection illuminationsTail lampON : 74
Circuit Diagram
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Start/Stop Button Repair procedures
Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the driver crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the start/stop button (A) from the center fascia garnish after loosening the mounting clip.
Hyundai Genesis (DH) 2013-2016 Service Manual: Blind Spot Detection Indicator Repair procedures
Removal Blind Spot Detection Warning Indicator 1. Disconnect the negative (-) battery terminal. 2. Remove the mirror (A). Installation Blind Spot Detection Warning Indicator 1. Install the outside mirror. 2. Connect the negative (-) battery terminal.
