Hyundai Genesis (DH): AVN System / AUX jack Schematic Diagrams

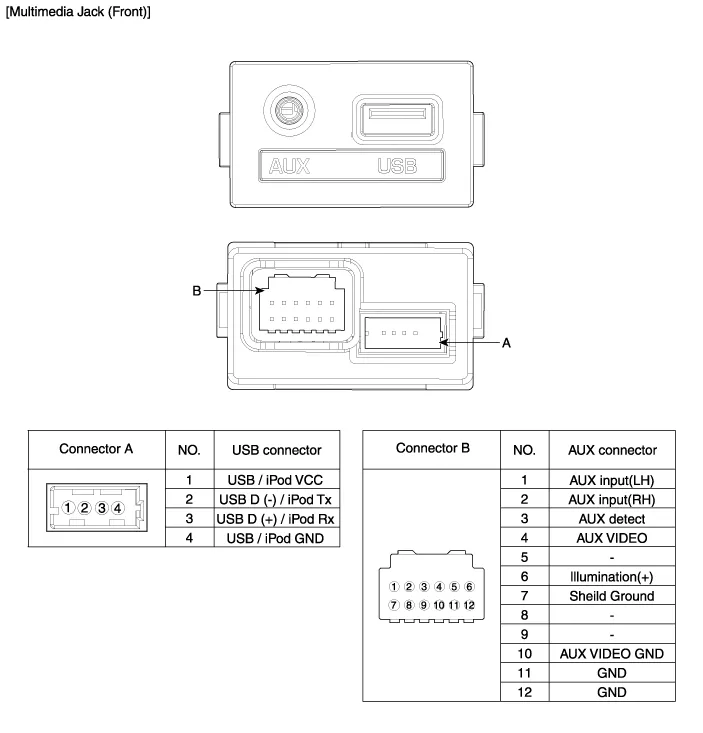

| Circuit Diagram |
Inspection Troubleshooting of the speakers When handling the speakers: - Do not cause shock to the speakers by dropping or throwing them.
Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Temperature Control Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the warm (Driver's side) or cool (Passenger's side) position when connecting 12V to terminal 3 and grounding terminal 4.
Hyundai Genesis (DH) 2013-2016 Service Manual: Auto Defogging Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the auto defogging actuator operates to the close position when connected in reverse.
