Hyundai Genesis (DH): Intake And Exhaust System / Air Cleaner Components and Components Location

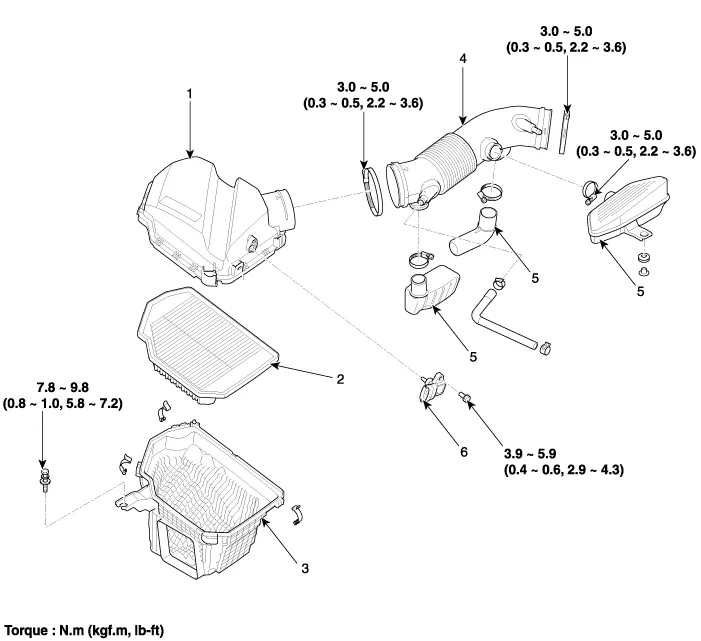

| Components |
| 1. Air cleaner cover 2. Air cleaner element 3. Air cleaner body | 4. Air intake hose 5. Resonator 6. Intake air temperature sensor (IATS) |
Removal and Installation [Air Cleaner Assembly] 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. (Refer to Engine And Transaxle Assembly - "Engine Cover") 3.
