Hyundai Genesis (DH): Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams
Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic Diagrams

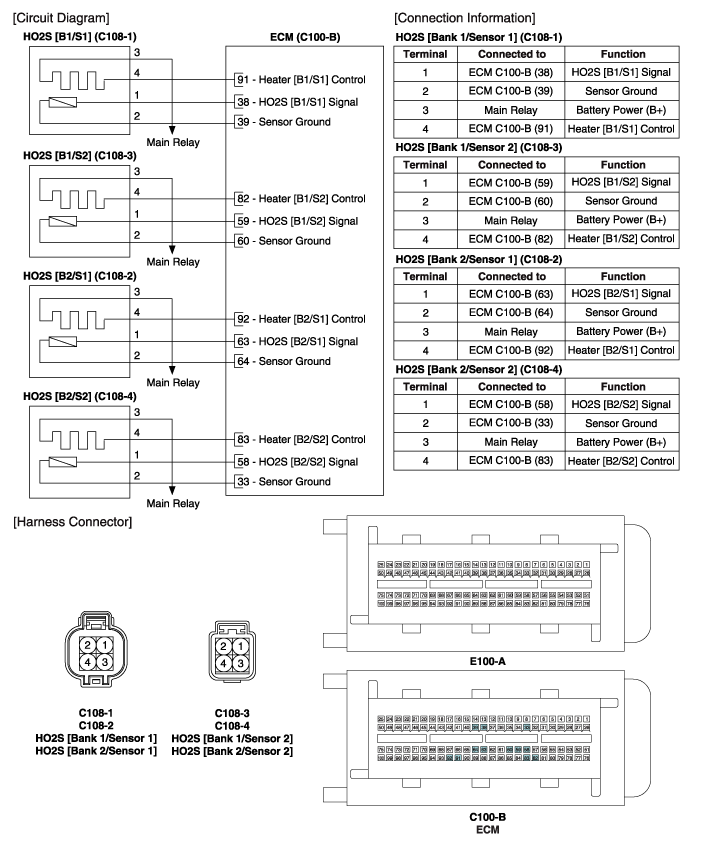

| Circuit Diagram |
Signal Waveform
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S terminals 1 and 2. 4.
