Hyundai Genesis (DH): Engine Control System / Heated Oxygen Sensor (HO2S) Troubleshooting

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Troubleshooting

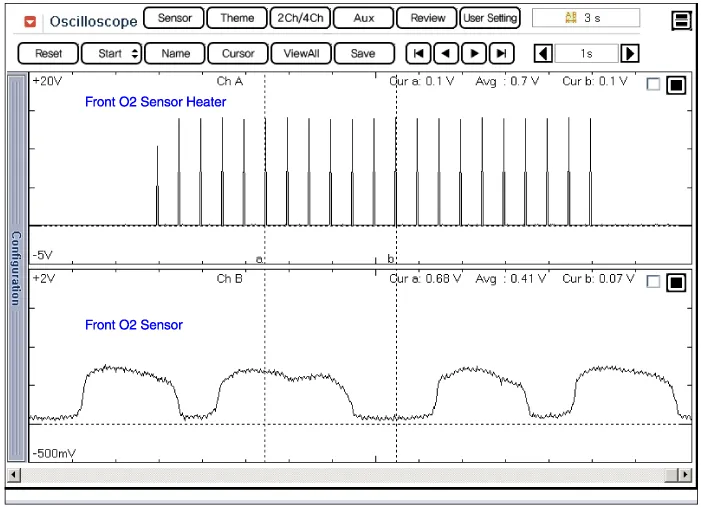

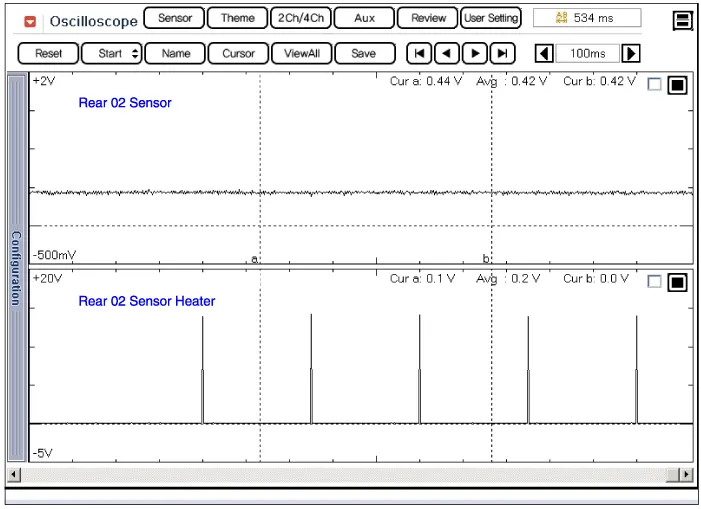

Signal Waveform

    Specification A/F Ratio (?)Output Voltage(V)RICHMin. 0.8LEANMax. 0.1 ItemSpecificationHeater Resistance (?)3.0 ~ 4.1 [20

    Circuit Diagram
