Hyundai Genesis: ESC(Electronic Stability Control) System / Front Wheel Speed Sensor Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Brake System / ESC(Electronic Stability Control) System / Front Wheel Speed Sensor Components and Components Location

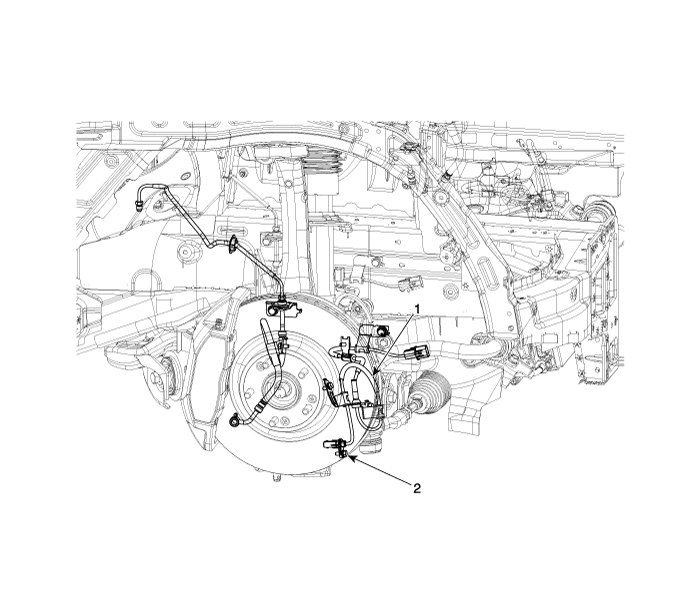

Components

1. Front wheel speed sensor cable
2. Front wheel speed sensor

Emergency Signal System Description and Operation
Description Introduction of quick brake warning system (ESS) In case of quick brake by the driver, the brake lamp or turn signal blinks to warn against the vehicle approaching from the rear. 1 ...

Front Wheel Speed Sensor Repair procedures
Removal [4WD] 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the front wheel and tire (A) from the front hub. Tightening torque : 88.3 ~ 107.9 N.m (9 ...
