Hyundai Genesis: Front Seat / Front Seat Frame Assembly Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly Components and Components Location

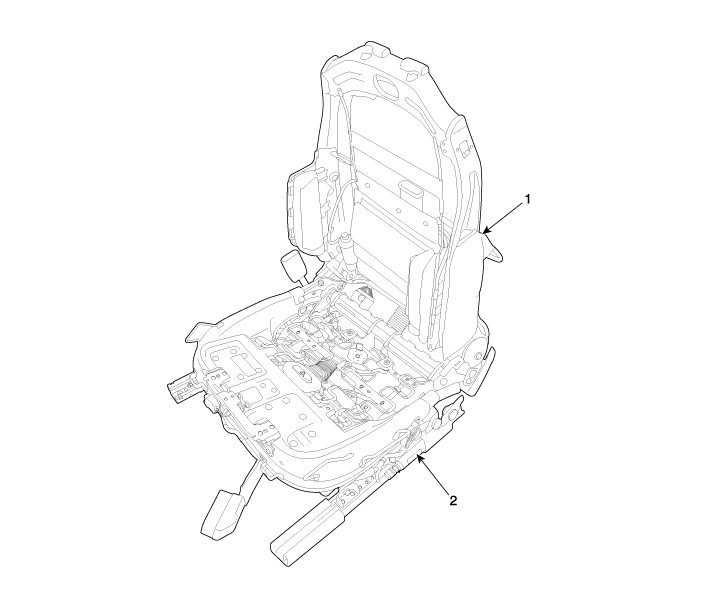

Component Location

1. Front seat back frame assembly
2. Front seat cushion frame assembly

Front Seat Cushion Cover Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...

Front Seat Frame Assembly Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...
