Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle Components and Components Location

Component Location

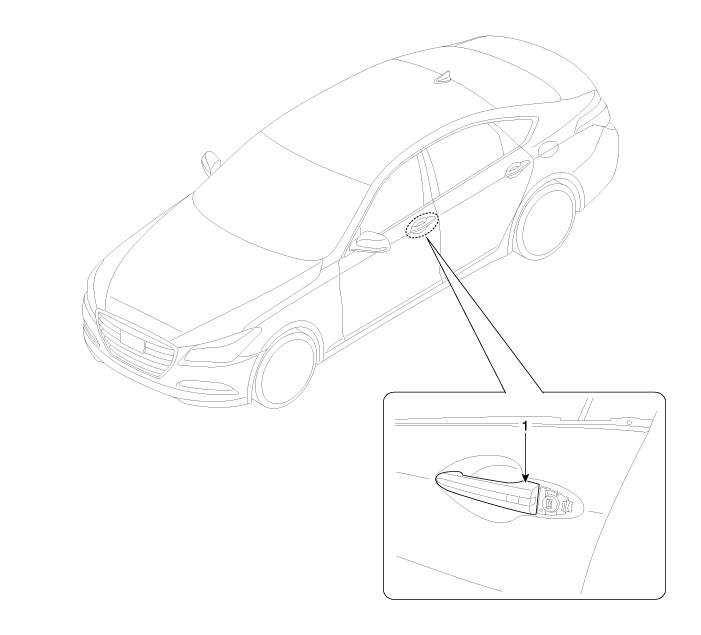

1. Front door outside handle


Front Door Module Repair procedures
Replacement 1. Remove the front door window glass. (Refer to Front Door - "Front Door Window Glass") 2. Remove the front door outside handle. (Refer to Front Door - "Front Door Outside Hand ...

Front Door Outside Handle Repair procedures
Replacement 1. Remove the handle cover (B) by pushing the button (A) located in the lower part of the handle cover using a key or flat head screwdriver. 2. Remove the plug hole (B). 3. ...
