Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Front Bumper / Front Bumper Cover Components and Components Location

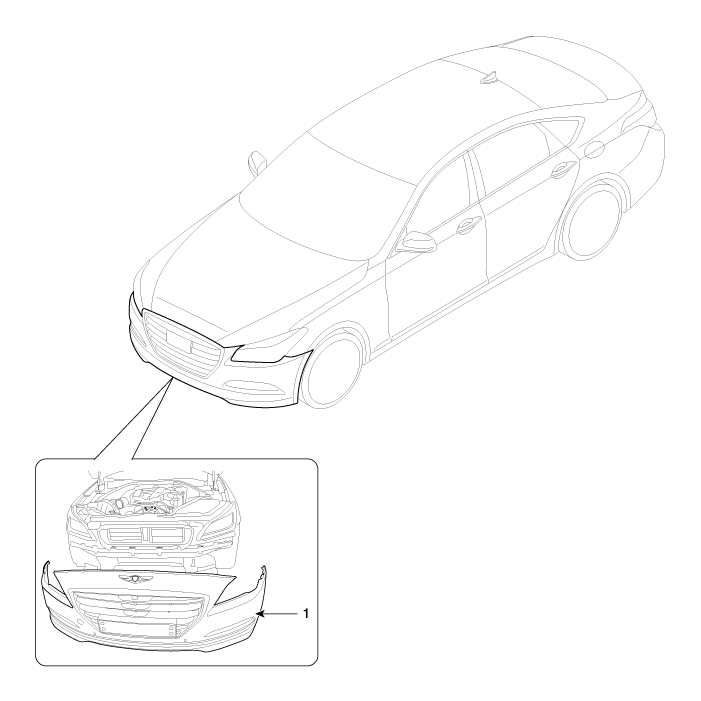

Component Location

1. Front bumper cover


Components and Components Location
Components (1) 1. Front bumper cover2. Radiator grille upper cover Components (2) 1. Front bumper grille2. Front bumper grille chrome piece [LH]3. Front bumper grille chrome piece [CTR]4. F ...

Front Bumper Cover Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...
