Hyundai Genesis: General Information / Special Service Tools
Hyundai Genesis (DH) 2013-2016 Service Manual / Driveshaft and axle / General Information / Special Service Tools
| Special Service Tools |
| Tool Name / Number | Illustration | Description |
| Ball joint remover 09581-11000 |
| Spreading the front disc brake piston. |
| Ball joint remover 09568-2J100 |
| Removal of the rear assist arm and tie rod end ball joint. |
| Bearing outer race installer 9530-3T100 |
| Installation of thwork bearing outer race. (Use with 09231-H1100) |
| Removing plate 09530-3T200 |
| Removal of the pinion drive inner bearing. |
| Differential assembly work stand 09530-3T300 |
| Removal & Installation of the differential assembly working stand. |
| Differential side oil seal installer 09530-3T500 |
| Installation of the differential side oil seal. (Use with 09231-H1100) |
| Pinion oil seal installer 09530-3T600 |
| Installation of the pinion oil seal installer. (Use with 09231-H1100) |
| Removing plate 09527-4A000 |
| Removal of the differential carrier assembly inner bearing. |
| Bearing installer 9453-3B200 |
| Installation of the differential carrier assembly inner bearing. |
| Bearing outer race installer 09532-11500A |
| Installation of the bearing outer race. (Use with 09500-11000) |
| Bar 09231-H1100 |
| Use with 9530-2W100, 09530-2W700, 09431-26200. |
| Bar 09500-11000 |
| Use with 9532-11500A. |
| Front differential carrier side bearing race installer 09432-3D900 |
| Installation of the side bearing race (Use with 09231-H1100 ) |
| Front differential carrier side oil seal installer 09474-4E100 |
| Installation of the differential carrier oil seal installer (Use with 09231-H1100) |
| Front differential side bearing removal adapter 09474-4E200 |
| Removal of the differential carrier assembly side bearing. |
| Front differential side bearing installer 09432-3D500 |
| Installation of the differential carrier side bearing. (Use with (09231-H1100) |
| Front differential pinion rear bearing race installer 09432-33700 |
| Installation of pinion rear bearing race. (use with 09231-11000) |
| Front differential pinion front bearing race installer 09452-2W500 |
| Installation of pinion front bearing race. (use with 09231-H1100) |
| Pinion cage oil seal installer 09474-4E300 |
| Installation of pinion cage oil seal. (use with 09231-H1100) |
| front differential assembly working stand 09474-4E400 |
| Removal & Installation of the differential assembly working stand. |
| Front differential carrier cover oil seal installer 09452-1P100 |
| Installation of differential carrier cover oil seal. (use with 09231-H1100) |
| Front differential side bearing race remover adapter 09452-2W300 |
| Removal of differential side bearing race. |
| Engine support fixture(Beam) 09200-3N000 |
| Removal and installation of the transaxle. Except lower supporter, use beam only with new engine support fixture supporter(SST No.:09200-2S000) |
| Supporter 09200-2S100 |
| Removal and installation of the transaxle. Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000) |
| Supporter 09200-2S200 |
| Removal and installation of the transaxle. Use this beam (SST No. : 09200-38001/3N000) with the adapter (SST No. : 09200-2W000) |
| Differential assembly fixture die adapter 09530-3C300 |
| Use with 09530-3T300 (Tau engine rear diff) |
| Differential bearing removal adapter 09530-3C100 |
| Removal of the differential carrier assembly inner bearing. |
| Differential bearing installer 09530-3C200 |
| Installation of the differential carrier assembly inner bearing. |
| CV Joint puller 09517-4E000 |
| Separate the driveshaft from the knuckle. |

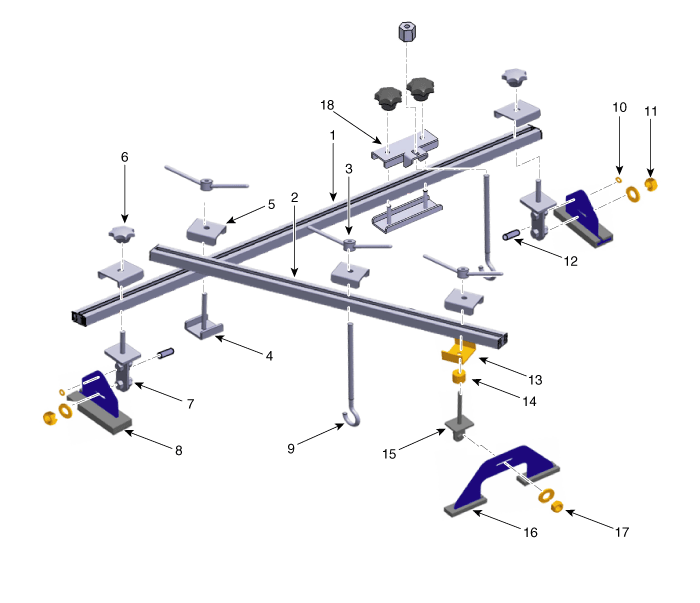

? Engine support fixture special tool assembly drawing
| 1. 09200-3N000(Main bar) 2. 09200-3N000(Sub bar) 3. 09200-3N000(Handle) 4. 09200-3N000(Stopper) 5. 09200-3N000(Stopper) 6. 09200-3N000(Knob) 7. 09200-3N000(Adapter) 8. 09200-2S000(Supporter) 9. 09200-3N000(Hanger) | 10. 09200-3N000(Clip) 11. 09200-3N000(Nut) 12. 09200-3N000(Pin) 13. 09200-2S000(Stopper) 14. 09200-2S000(Spacer) 15. 09200-2S000(Adapter) 16. 09200-2S000(Nut) 17. 09200-2S000(Supporter) 18. 09200-2W000(Adapter) |
