Hyundai Genesis: Front Bumper / Components and Components Location

Components (1)

1. Front bumper cover

2. Radiator grille upper cover

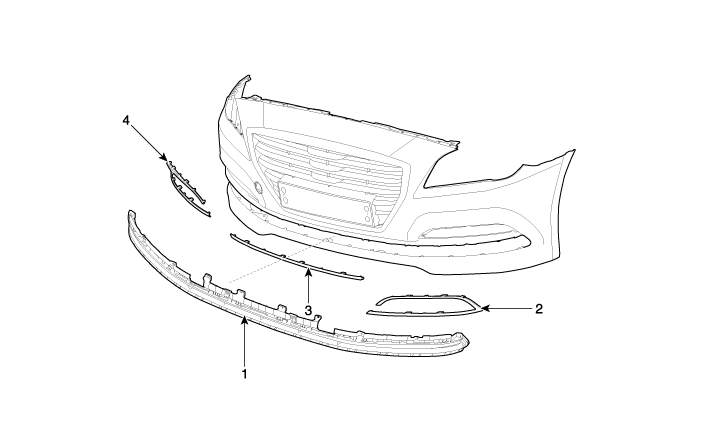

Components (2)

1. Front bumper grille 2. Front bumper grille chrome piece [LH]

3. Front bumper grille chrome piece [CTR] 4. Front bumper grille chrome piece [RH]

Front Bumper

...

Front Bumper Cover Components and Components Location

Component Location 1. Front bumper cover ...
