Hyundai Genesis: AVN System / External AMP Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / AVN System / External AMP Components and Components Location

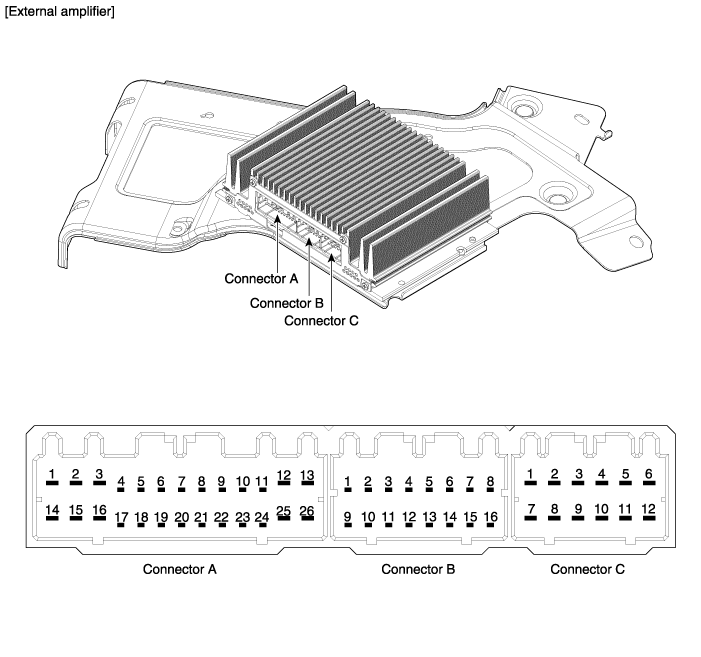

Components

NO.
Connector A
NO.
Connector B
NO.
Connector C
1
B (+)
1
-
1
Right side low (+)
2
B (+)
2
-
2
Left side low (+)
3
B (+)
3
-
3
Right front midrange/tweeter (+)
4
-
4
-
4
Left front midrange/tweeter (+)
5
Multimedia-CAN (high)
5
-
5
Right front door (+)
6
Multimedia-CAN (low)
6
-
6
Left front door (+)
7
ACC
7
-
7
Right side low (-)
8
-
8
-
8
Left side low (-)
9
-
9
-
9
Right front midrange/tweeter (-)
10
-
10
-
10
Left front midrange/tweeter (-)
11
NAVI sound (+)
11
-
11
Right front door (-)
12
Sub woofer 2 (+)
12
-
12
Left front door (-)
13
Sub woofer 1 (+)
13
-
13

14
GND
14
-
14
15
GND
15
-
15
16
GND
16
-
16
17
-
17

17
18
SPDIF (+)
18
18
19
SPDIF (-)
19
19
20
SPDIF GND(shield)
20
20
21
-
21
21
22
-
22
22
23
-
23

24
NAVI sound (-)
24

25
Sub woofer 2 (-)
25

26
Sub woofer 1 (-)
26
