Hyundai Genesis (DH): Button Engine Start System / Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Button Engine Start System / Components and Components Location

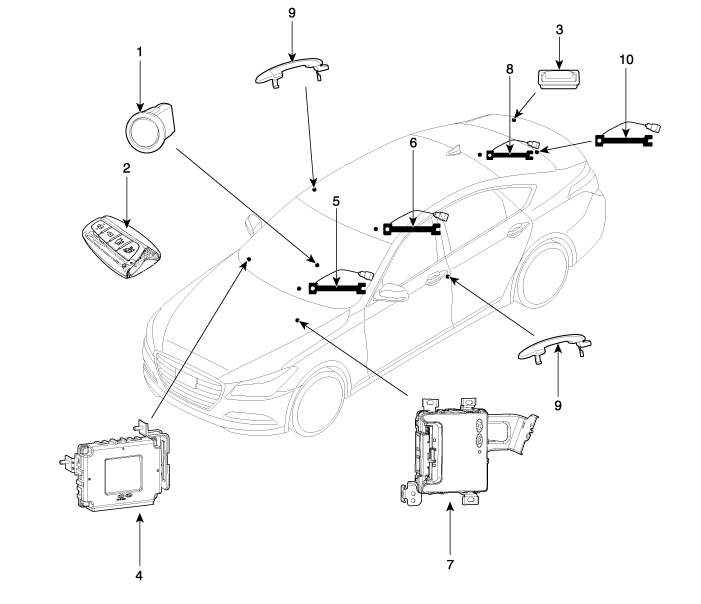

| Component Location |
| 1. Start Stop Button(SSB) 2. FOB key 3. Trunk lid switch 4. Body control module (BCM) 5. Interior antenna 1 | 6. Interior antenna 2 7. Smart key unit 8. Trunk antenna 9. Door handle & door antenna 10. Bumper antenna |
Circuit Diagram (1)
