Hyundai Genesis (DH): Automatic Transmission Control System / 4&OD Clutch Control Solenoid Valve Schematic Diagrams

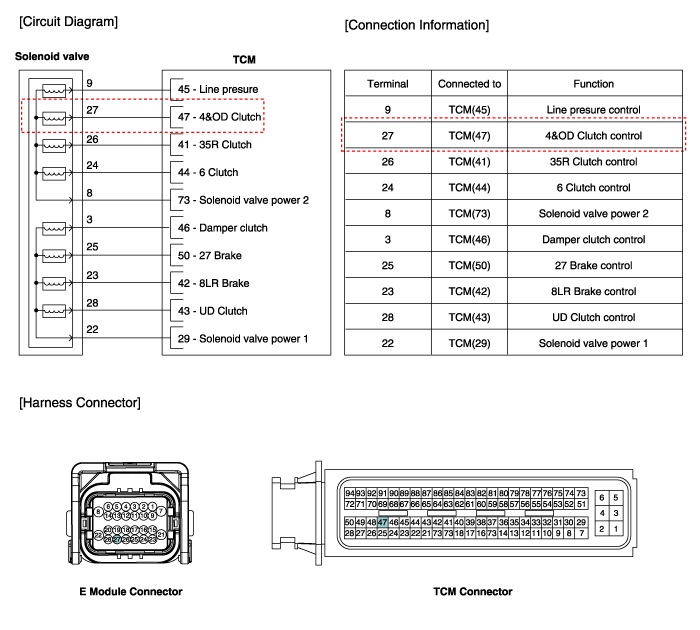

| Circuit Diagram |
Specifications Direct control VFS[4&OD/C] ? Control type : Normal high type Control Pressure kpa (kgf/cm?, psi)0~1569.06 (0~16,0~227.57)Current value(mA)0~1100 Internal resistance(?)5.
Inspection 1. Turn ignition switch OFF. 2. Disconnect the E Module connector. 3. Measure resistance between solenoid valve terminals. 4.
