Hyundai Genesis: Cooling System / Water pump Components and Components Location

Components

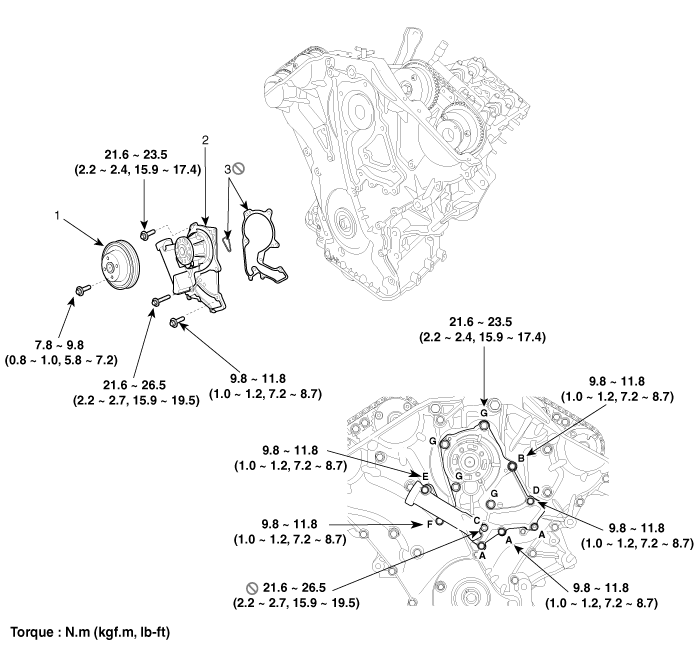

1. Water pump pulley 2. Water pump

3. Water pump gasket

Water Temperature Control Assembly Repair procedures

Removal and Installation Water Temperature Control Assembly 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine room under cover. (Refer to Engine And Transaxle ...

Water pump Repair procedures

Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover" ...
