Hyundai Genesis: Body Side Molding / Waist Line Molding Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.
1.

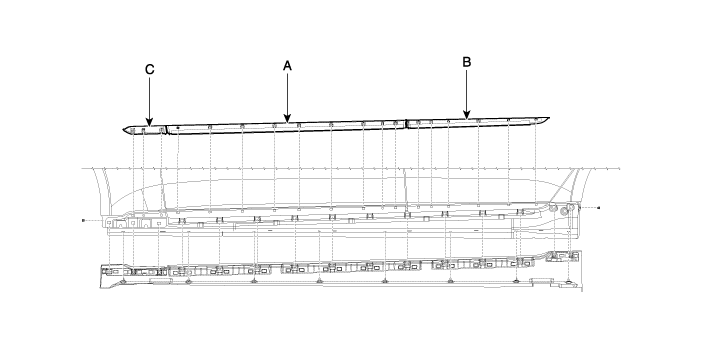

Using a screwdriver or remover, remove the front waist line molding (A).
2.
Using a screwdriver or remover, remove the rear waist line molding (B).
3.
Using a screwdriver or remover, remove the fender waist line molding (C).

4.
Install in the reverse order of removal.

Replace any damaged clips.
