Hyundai Genesis: Body Side Molding / Side Sill Molding Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.
1.
Loosen the side sill molding mounting screws.
2.

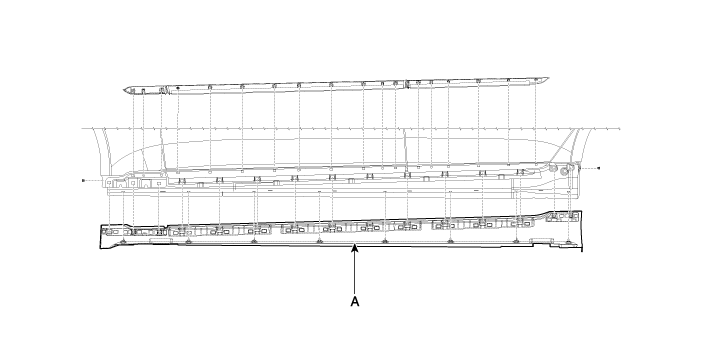

Using a screwdriver or remover, remove the side sill molding (A).

3.
Install in the reverse order of removal.

Replace any damaged clips.
