Hyundai Genesis: Trunk Lid / Trunk Lid Assembly Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing and installing the trunk lid, an assistant is necessary .
Be careful not to damage the trunk lid and body surface.
1.
Remove the trunk lid trim.
(Refer to Trunk Lid - "Trunk Lid Trim")
2.

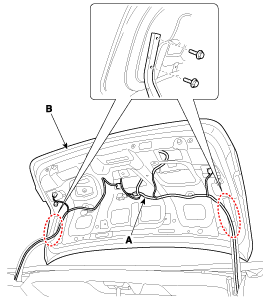

Disconnect the connectors and trunk lid wiring harness (A).
3.
After loosening the mounting bolts, remove the trunk lid assembly (B).

Tightening torque :
21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)

4.
Install in the reverse order of removal.

Make sure the trunk lid locks/unlocks and opens/closes properly.
Adjust the trunk lid as necessary.
Make sure the connectors are connected in properly.
Replace any damaged clips.
