Hyundai Genesis (DH): Automatic Transmission Control System / Transmission Oil Temperature Sensor Schematic Diagrams
Hyundai Genesis (DH) 2013-2016 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / Transmission Oil Temperature Sensor Schematic Diagrams

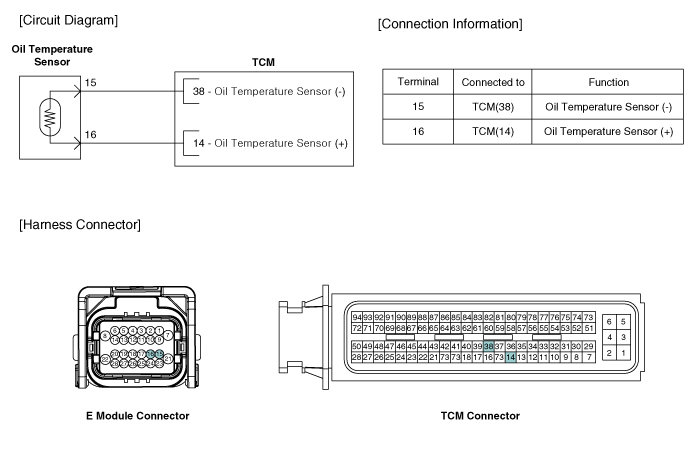

| Circuit Diagram |
Specifications ? Type: Negative Thermal Coefficient Type Temp.[(
Inspection 1. Turn ignition switch OFF. 2. Disconnect the E Module connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal.
