Hyundai Genesis: BLUE LINK / Components and Components Location

Components

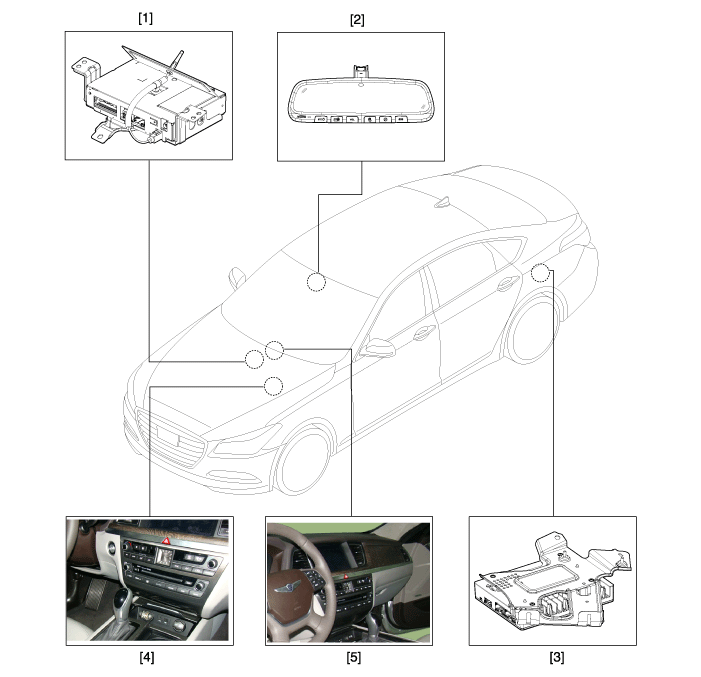

1. BLUE LINK unit (I-BOX)
2. BLUE LINK keypad
3. External amplifier
4. Premium AVN head unit
5. Front Monitor

BLUE LINK
...

Schematic Diagrams
System Block Diagram ...
