Hyundai Genesis: Timing System / Timing Chain Cover Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Timing System / Timing Chain Cover Components and Components Location

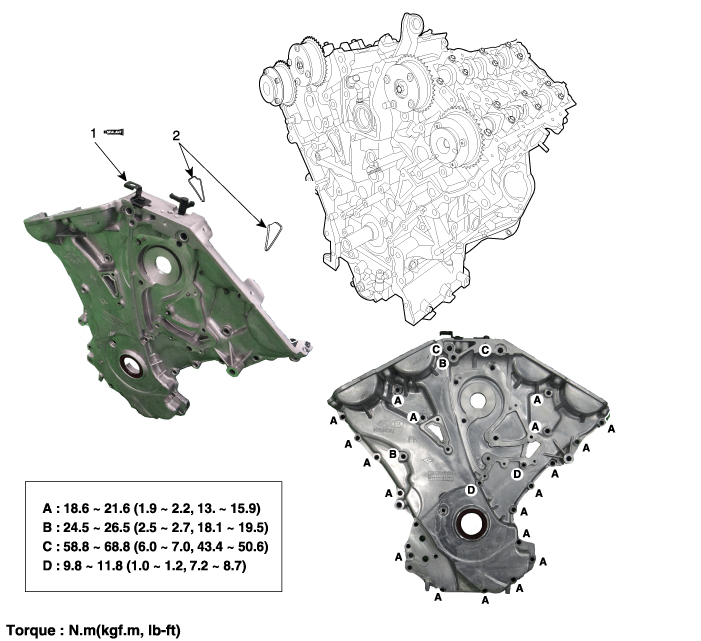

Components

1. Timing chain cover
2. Gasket

Front Oil Seal Repair procedures
Removal 1. Remove the crankshaft pulley. (Refer to Timing System - "Crankshaft Pulley") 2. Remove the timing chain cover oil seal (A). Installation 1. Using SST (09231-3C100), install t ...

Timing Chain Cover Repair procedures
Removal 1. Remove the lower oil pan. (Refer to Lubrication System - "Oil Pan") 2. Drain the coolant. (Refer to Cooling System - "Coolant") 3. Remove the air cleaner assembly. (Refer to ...
