Hyundai Genesis: Timing System / Timing Chain Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Timing System / Timing Chain Components and Components Location

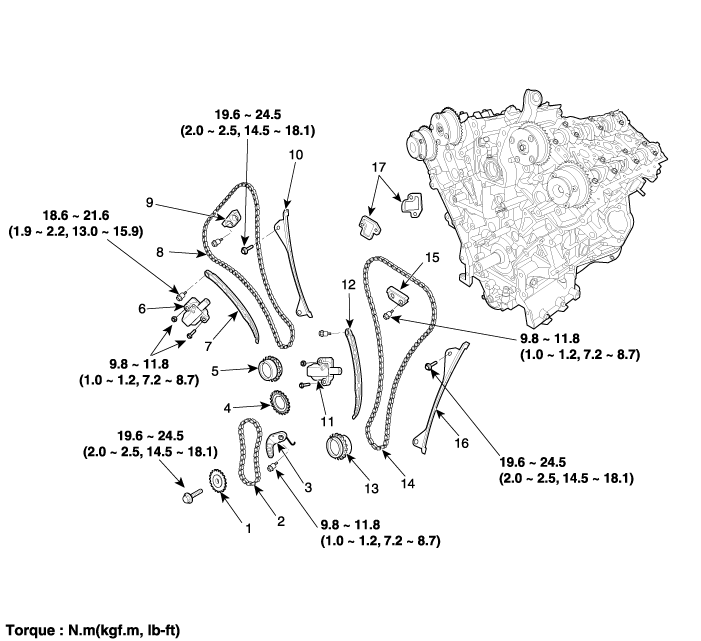

Components

1. Oil pump sprocket
2. Oil pump chain
3. Oil pump tensioner assembly
4. Crankshaft oil pump sprocket
5. Crankshaft RH chain sprocket
6. RH timing chain auto tensioner
7. RH timing chain tensioner arm
8. RH timing chain
9. RH cam to cam guide
10. RH timing chain guide
11. LH timing chain auto tensioner
12. LH timing chain tensioner arm
13. Crankshaft LH chain sprocket
14. LH timing chain
15. LH cam to cam guide
16. LH timing chain guide
17. tensioner adapter
