Hyundai Genesis: Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and Components Location

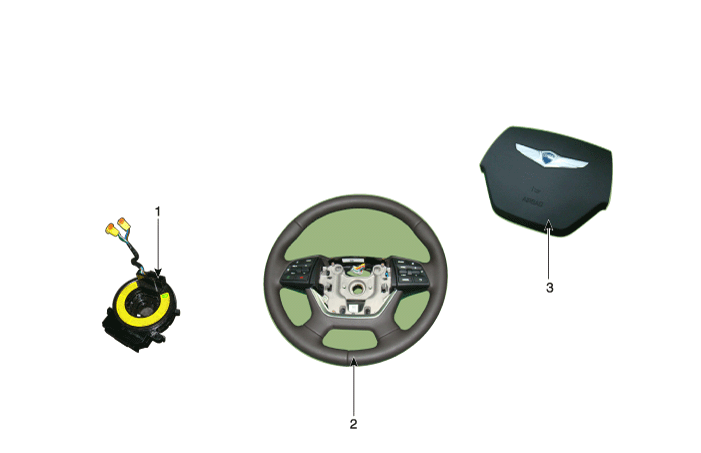

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring

Driver Airbag (DAB) Module and Clock Spring Description and Operation
Description The Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal cras ...

Driver Airbag (DAB) Module and Clock Spring Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Put a flat tool(O4mm) into a guide hole located in the bottom of steering wheel ...
