Hyundai Genesis: Panorama sunroof / Tilting the sunroof

When the sunshade is closed

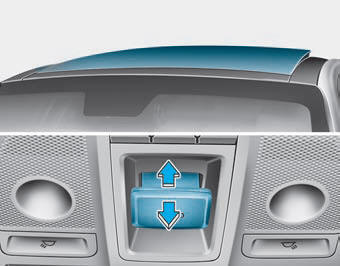

If you push the sunroof control lever upward, the sunshade will slide all the way open then the sunroof glass will tilt.

To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

When the sunshade is opened

If you push the sunroof control lever upward, the sunroof glass will tilt.

To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

Sliding the sunroof
When the sunshade is closed If you pull the sunroof control lever backward, the sunshade will slide all the way open then the sunroof glass will slide all the way open.To stop the sunroof m ...

Closing the sunroof
Press the sunshade CLOSE button. The sunroof glass will close then the sunshade will close. To stop the sunroof movement at any point, press the sunshade control switch momentarily. Automat ...
