Hyundai Genesis: Panorama sunroof / Sliding the sunroof

When the sunshade is closed

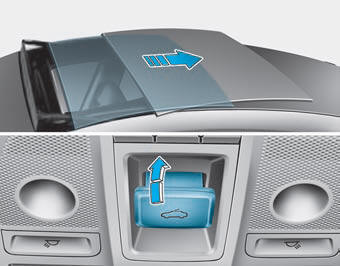

If you pull the sunroof control lever backward, the sunshade will slide all the way open then the sunroof glass will slide all the way open.To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

When the sunshade is opened

If you pull the sunroof control lever backward, the sunroof glass will slide all the way open. To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

✽ NOTICE

Only the front glass of the panorama sunroof opens and closes.

Sunshade
To open the sunshade, press the sunshade control switch (1). To close the sunshade, press the sunshade control switch (2). If you press the switch when the sunroof glass is opened, ...

Tilting the sunroof
When the sunshade is closed If you push the sunroof control lever upward, the sunshade will slide all the way open then the sunroof glass will tilt. To stop the sunroof movement at any poi ...
